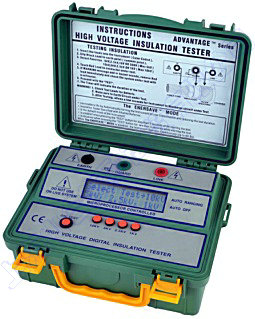

4104 IN Insulation Testers
Up To 10 kV
|
 |
|
|
FEATURES |
| |
 2 lines x 16 characters large LCD. |
| Smart microprocessor controlled. |
| Four insulation test voltages. |
| Insulation resistance auto-ranging on all ranges. |
| Measures insulation time test. |
| Bar-graph indicates test voltage-rise and decay can be observed during tests. |
| Warning and display of external voltage presence. |
| EnerSave (tm). |
| Very low battery consumption. |
| Low battery indicator. |
| Over load protection. |
| Auto-off. |
| CAT III |
|
|
|
| SPECIFICATIONS |
| |
| Test Voltage (DC V) |
1kV / 2.5kV / 5kV / 10kV |
| Measuring Ranges (Auto-Ranges) |
1kV : 0-50G Ohm, 2.5kV : 0-125G Ohm, 5kV : 0-250G Ohm, 10kV : 0-500G Ohm |
| Accuracy |
+/- 5%rdg |
| Output Power Limit |
1W |
| Sealed With Gasket |
yes |
| Insulation Resistance Between Electrical Circuit and Houseing |
2000M Ohm/200V |
| Withstand Voltage |
700 Vac for one Min. between electrical circuit and case |
| Operation |
-15 degree C to 55 degree C up to 80% |
| Dimensions |
250(L) x 190(W) x 110(D)mm |
| Weight |
Approx. 1.730kg (battery included) |
| Power Source |
1.5V (SUM-3) x 8 Type AA |
| Accessories |
Test leads |
| |
Shoulder belt (BET-2800) |
| |
Instruction manual |
| |
Batteries |
|
| 特 點 |
 ● 2行x16字的大型液晶顯示器。
● 使用微處理器系統控制設計。
● 絕緣阻抗量測電壓有4個檔位供選擇:1kV, 2.5kV, 5kV, 10kV。
● 顯示量測時間。
● 類比刻劃顯示測試電壓狀況。
● 有外來電壓警示功能。
● 耗費電源微小。
●過載保護。
●電源不足顯示。
●自動關機。
● 符合CAT Ⅲ
。 |
|
| 規 格 (23°C±5°C ＜80%R.H.) |
| 量測檔位 |
1kV / 2.5kV / 5kV / 10kV |
| 量測範圍(自動換檔) |
0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ |
| 準確度 |
±5% 讀值 |
| 外形尺寸 |
205(長) × 190(寬) × 110(高)mm |
| 重量(含電池) |
約1900g |
| 使用電池 |
1.5V(AA)×8(顆) 鹼性電池 |
|
|
|
| | |
